Private 5G Gateway
P5G-N100
Intel® N-series Processor (N150/N350)
Overview
The EdgeNectar P5G-N100 is a compact 1U rack-mountable private 5G gateway powered by Intel® N-series processors. Designed for edge networking and lightweight 5G deployments, it delivers reliable performance with low power consumption and flexible connectivity. With support for up to four small cell radio base stations, integrated PoE networking, and optional 10GbE uplinks, the P5G-N100 is ideal for small-scale private 5G networks, edge gateways, and enterprise deployments.
Key Features
Intel® N-series Processor (N150 / N350)
1 × DDR5 SO-DIMM, up to 32GB
4 × 2.5GbE RJ45 with PoE
Optional 4 × 10GbE SFP+
NVMe + SATA dual storage
Supports up to 4 × 5G small cells
Compact 1U rackmount design
Windows / Linux support
Applications
Private 5G Gateway
Enterprise Edge Networking
Warehouse & Office Deployments
IoT Edge Gateway
Lightweight MEC Node

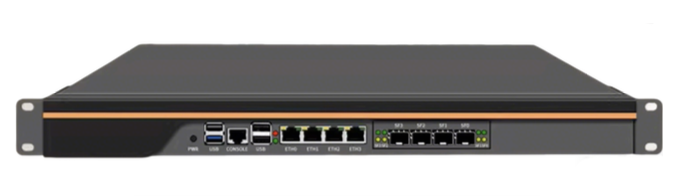

Product Appearance
System Setup
Technical Specifications
System Overview
Processor / Chipset
Intel N-series processors (N150 / N350), N100 chipset
System Memory
1x DDR5 SO-DIMM slot, supports up to 32GB
BIOS
AMI BIOS
Graphics
Integrated Intel UHD Graphics
OS Support
Windows 10 / Windows 11 / Linux
Watchdog
Supported
Ethernet
4x 2.5G network ports (1G compatible), supports PoE
Network & Storage
Storage
1x NVMe M.2 interface, 1x SATA hard drive interface
Network Expansion
Optional support for 4x 10GbE fiber ports
PoE (Power Over Ethernet)
Supported
Panel I/O Interface
Display
1x VGA interface
USB
3x USB 2.0, 1x USB 3.0
Serial Port
1x RJ45 console serial port
Power Connector
1x DC power interface
Buttons
Power switch button
LEDs
Power LED, HDD LED
Mech & Env
Power Input
Industrial-grade power supply, Input: 100-240V~1.0A, Output: 12V 4.2A
Dimensions
483 × 255 × 44 mm
Weight
Approx. 4 kg
Mounting
1U rack mount installation
Operating Temp
0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD)
Relative Humidity
5~90% relative humidity, non-condensing
Certification
CE, CCC, FCC, RoHS
