Xeon-6 SOC CEB
Flex-6450
Intel 4U Xeon-6 SOC Tower-Rack Convertible Server
Overview
The EdgeNectar Flex-6450 is a powerful and flexible 4U Intel® Xeon® SoC edge server designed for both tower and rack-mounted installations. Powered by the 6th Gen Intel® Xeon® SoC with up to 72 cores, it delivers exceptional compute performance for data-intensive and edge workloads. Its robust design and high expandability make it ideal for AI, 5G, and industrial applications.
Key Features
Single 6th Generation Intel® Xeon® SoC Processor (12C~72C)
DDR5 4800-6400 MT/s RDIMM Memory
HCC: 4 × DIMM Slots
XCC: 8 × DIMM Slots
Onboard 8 × 25 Gb/s SFP28 ports (via SoC built-in network controller)
2 × 1 Gb/s Gigabit Ethernet RJ45 ports
2 × 3.5” SATA + 3 × 2.5” SATA storage bays
2 × M.2 2280 SATA storage bays, supporting RAID 0/1
Configure 1: 4 × PCIe 5.0 x16 (x8 bandwidth) FHFL dual-slots
Configure 2: 2 × PCIe 5.0 x16 (x16 bandwidth) FHFL dual-slots + 1 × PCIe 4.0 x8 (x8 bandwidth) FHFL single-slot
Applications
Media Transcoding / Streaming: High-performance video encoding and content delivery at the edge.
VDI / Virtual Desktop Infrastructure: Scalable virtual desktop hosting for enterprises with high-performance computing and storage.
NetSec AI AIO: Comprehensive platform combining unified network security with advanced AI-driven analytics.
Edge AI AIO: Real-time AI inference and analytics deployed directly at the network edge for faster insights.

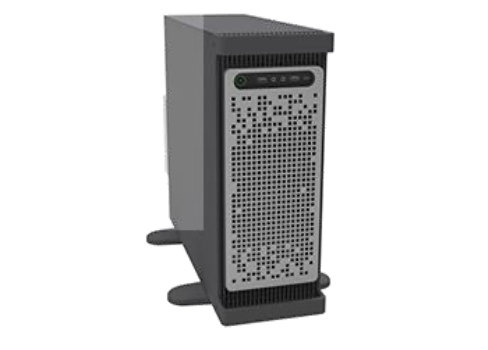

Product Appearance
Technical Specifications
Motherboard
Xeon-6 SOC CEB
System
Tower form factor, supports 19” standard rack-mounted installation, 4U — 500.0 × 435.0 × 175.0 mm
CPU
6th Gen Intel® Xeon® SoC — HCC (12C–42C) & XCC (56C–72C); supports vRAN, QAT & media hardware accelerators
Memory
DDR5 4800-6400 MT/s RDIMM — HCC: 4 × DIMMs, XCC: 8 × DIMMs
Storage
2 × M.2 2280 M-key SATA (RAID 0/1); 2 × 3.5” SATA + 3 × 2.5” SATA bays
I/O
8 × 25G SFP28 (rear), 2 × 1GbE RJ45 (rear), 1 × GbE RJ45 BMC (rear), 2 × USB 3.2/2.0 Type-A (rear), 1 × VGA (rear), 1 × COM (rear), 2 × USB 3.2/2.0 Type-A (front)
Buttons
1 × Power On/Off, 1 × System Reset
LEDs
1 × Power status, 1 × HDD activity, 2 × LAN activity
PCIe Expansion
Configure 1: 4× 5.0 x16(x8) FHFL Dual. Configure 2: 2× 5.0 x16(x16) FHFL Dual + 1× 4.0 x8(x8) FHFL Single
BMC
Aspeed® AST2600
TPM
Optional TPM 2.0 support
Rails
Optional rail-mounted installation support
Fans
2 × 12038 fans; 2 × 9225 fans
Power Supply
ATX 1600W; optional CRPS power supply support
